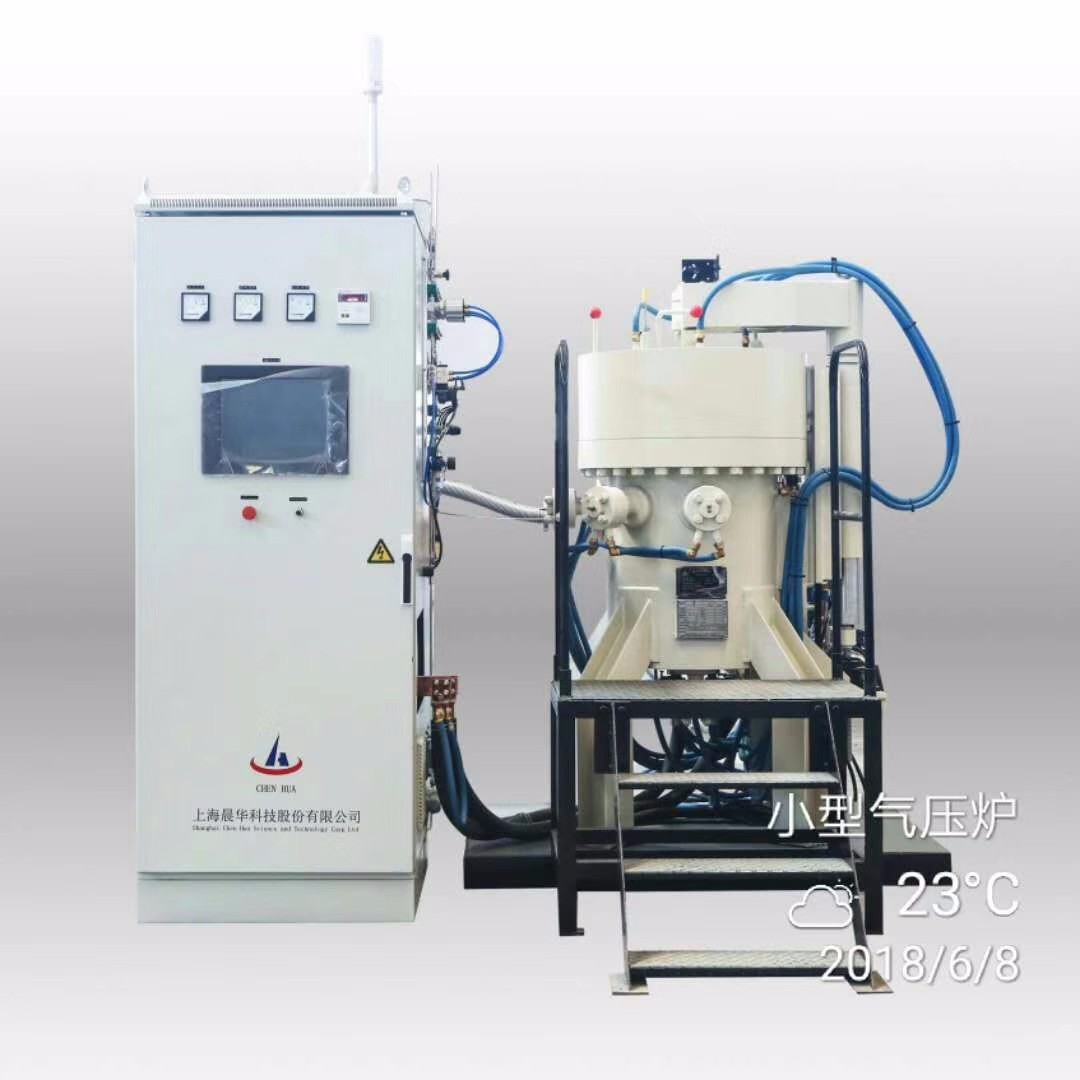

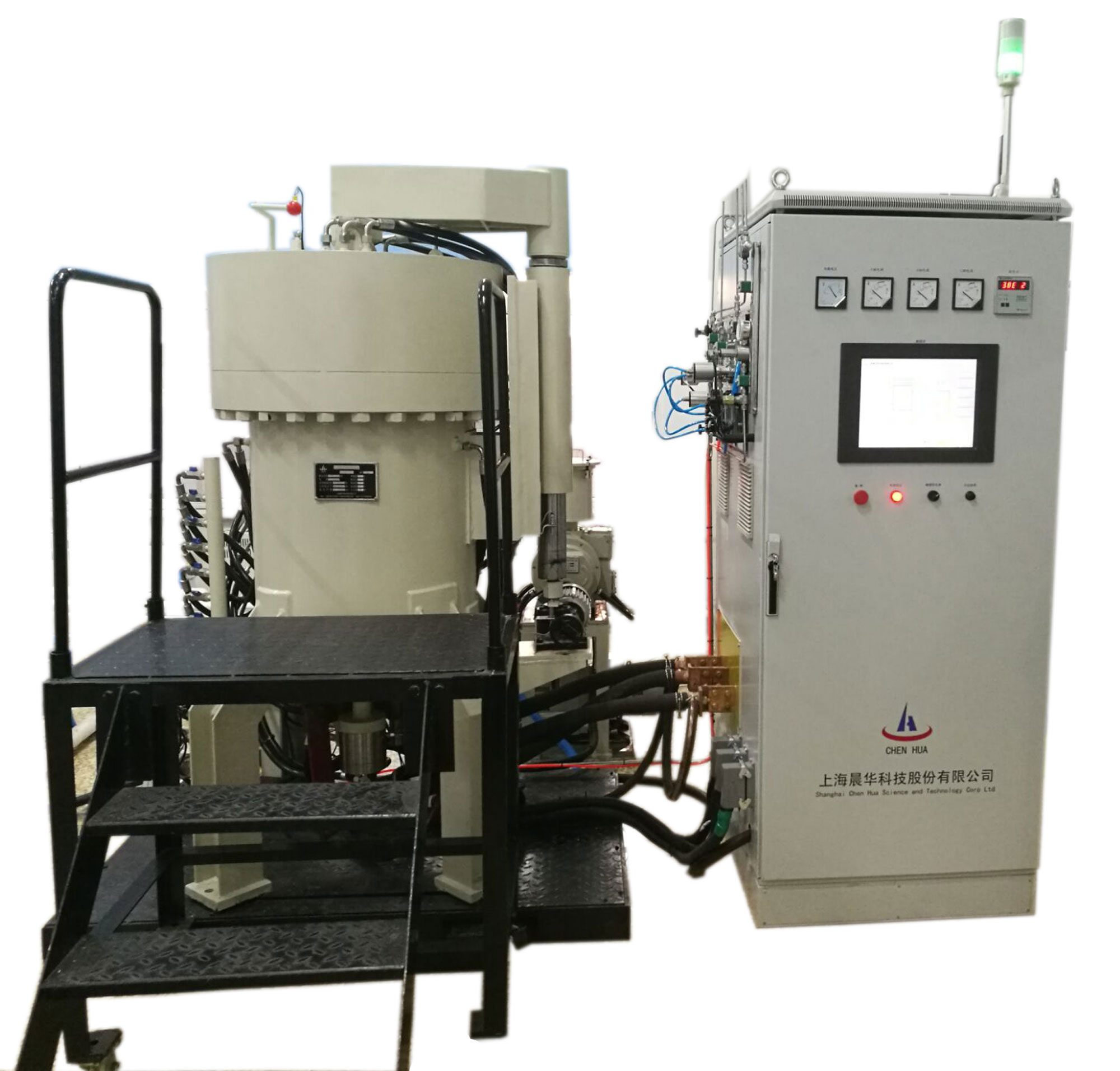

Vacuum Gas Press Sintering Furnace

Share with：

Online inquiry and order

details

Application:

The furnace with the periodic operation, under the condition of high temperature and atmosphrere pressure,

mainly used to sinter cemented carbide, ceramics and powder metallurgy shaping.

Features:

1.Vertical structure, it is made up of furnace body, heating and thermal insulation system, furnace cover and

its lifting device, vacuum system, atmosphere control system, temperature control and system of temperature

measurement.

2.Electrical control is performed by the silicon controlled voltage regulator and imported programm instrument.

PLC programmable controller, LCD digital touch screen shows the simulative sintering condition inside the

furnace. The pressure control is done through piezoresistive pressure transducer made in Switzerland.

Also owning over-temperature,over-voltage proection and the sound-light alarm function.

Main technical parameters：

Model	Rated power	rated temperature	Working zone	Leak rate	Final vacuum	Max. pressure
ZTQ-60-20	60KW	2000℃	?200X250mm	≤3Pa/h	10^-3Pa	9.8MPa
ZTQ-80-22	80KW	2200℃	?200X300mm	≤3Pa/h	10Pa	5MPa
ZTQ-100-22	100KW	2200℃	?200X220mm	≤3Pa/h	1Pa	9.8MPa
